Spring Rewind (TF Series) | Hose Reel

HOME > PRODUCTS > Spring Rewind (TF Series)

Uses : Air, Water, Oil, Grease, Hydraulic Fluid.

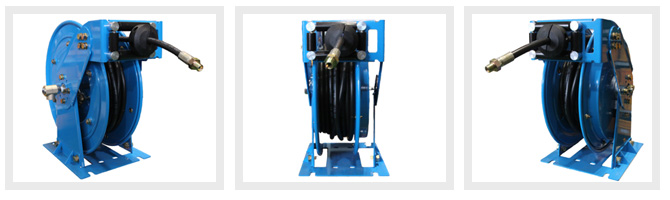

HOSE REEL  |  Spring Rewind
크게보기

Specification

Specification
Available Hose Capacity Max Pressure Max Temperature Installation
Size Length
1/4inch~3/4inch 10MR ~ 30MR 200kgf/cm' 212°F (100°C) Floor, Wall, Ceiling

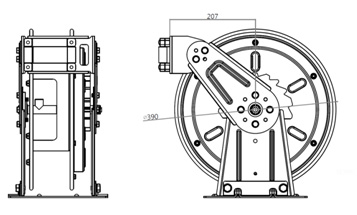

Design & Structure

HOSE REEL  |  Spring Rewind
크게보기
Dual Pedestal Frame Construction
  • Reels are all heavy duty, high strength steel construction and compact design
  • All bolted assembly without welding
  • Dual frame, guide plate & ball bearing support and 4-way roller assembly..

Improved High-Demand Spring
  • Long-life spring and special heat-treatment spring & non-corrosive ratchet.

Full-Flow Shaft and Swivel.
  • Maximize material flow with minimal pressure drop for faster fills.

Large Hose Capacity with Small Profile
  • compact pedestal and spool fits into tight spaces and can accommodate 10MR~30MR hose capacity.

Durable Finish
  • All materials is carbon steel as standard(Stainless, Aluminum and other materials are available when you requested)
  • Painting: powder coated for long life.

Other specifications are available.

Application

  • General service shops
  • Manufacturing plants
  • Municipalities and transits.
  • Construction equipment and fleet maintenance shops
HOSE REEL  |  Spring Rewind
크게보기
