Spring Rewind (EN-Series) | Hose Reel
HOME > PRODUCTS > Spring Rewind (EN-Series)
Uses : For Oil, Air, Water, Antifreeze, Grease & Lubricants.
Design & Structure
- EN Series are fully enclosed & Spring driven hose reel.
- Lightweight steel construction and attractive design.
- All bolted assembly without welding
- Special heat-treatment spring & non-corrosive ratchet.
- 4-way roller assembly.
- Full flow shaft and swivel.
- Standard inlet 90° balanced pressure swivel joint
- Inlet & Outlet connection threads are female NPT.
(Other threads are available when you request) - All materials is carbon steel as standard
- Install position:Wall, Ceiling, floor or tank with mounting bracket.
- EN Series hose reels are furnished standard with S.A.E 100R1 TYPE AT one wire braid hose.
Painting : Powder Coat.
Specification
| Available Hose specifications | Max Pressure | Max Temperature | Rewind Type | Installation | ||
|---|---|---|---|---|---|---|
| Size(Inch) | Hose Material | Length(MR) | ||||
| 3/8inch~1/2inch | Rubber(1W/B) | 10MR~12MR | 4500psi/310bar | 212℉ (100℃) | Spring | Floor, Wall, Ceiling |
| 30ft~40ft | ||||||
| MODEL NO. | HOSE CAPACITY | WORKING PRESSURE | ||||||
|---|---|---|---|---|---|---|---|---|
| I.D | O.D | LENGTH | ||||||
| mm | inch | mm | inch | meter | feet | bar | psi | |
| ECR9 | 9.5 | 3/8 | 17.5 | 0.89 | 12 | 39 | 60 | 870 |
| ECR13 | 13 | 1/2 | 20.6 | 0.81 | 10 | 32 | 60 | 870 |
※ The specifications are subject to be changed without previous notice for improvement.

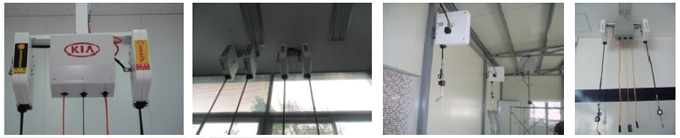

APPLICATION
