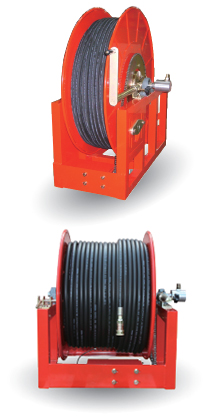

Uses : Fuel dispensing,Fire protection,Water supply,Chemical transfer etc.

Design & Structure

  • Heavy duty steel construction and compact design is suitable for long lengths of hose in power rewind.
  • If it is power rewind, Motor is installed outside of the Reel.
  • Power rewind reels are not supplied with switch but can be ordered separately
  • Chain and sprocket drive powered by electric, hydraulic or compressed air motor.
  • Direct crank rewind is permanently attached(Direct crank rewind is removable when you need.)
  • Roller guides are option(Specify roller position when ordering.)
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • Full flow shaft and swivel
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Inlet & Outlet connection threads are female NPT (Other threads are available when you request)
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
  • Type of Bevel Gear crank rewind is options(Pinion brake as standard)
  • Option: Automatic guide, Speed controller and Clutch are available.
  • Series 4000 reels are supplied without hose. Hose assemblies will be quoted according to your request.

Painting : Powder Coat.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
1/2 inch~ 3 inch Rubber(1W/B) 30MR~200MR 2900psi/200bar 212℉ (100℃) Manual & Power Motor Floor
100ft~650ft
Hose Reel | Power Rewind
크게보기
Specification

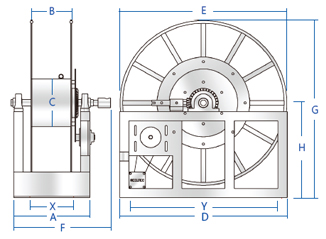

MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
S4013-29 12.7
1/2		 20.6
2.8		 150
500		 440
17.3		 240
9.4		 300
11.8		 740
29.1		 800
31.5		 790
31.1		 960
37.8		 560
22.0		 400
15.7		 640
25.2
S4013-39 12.7
1/2		 20.6
2.8		 200
650		 500
19.7		 300
11.8		 250
9.8		 690
27.2		 750
29.5		 800
31.5		 870
34.3		 495
19.5		 460
18.1		 590
23.2
S4019-19 19
3/4		 27.8
1.1		 100
300		 440
17.3		 240
9.4		 250
9.8		 740
29.1		 800
31.5		 760
29.9		 960
37.8		 560
22.0		 400
15.7		 640
25.2
S4019-29 19
3/4		 27.8
1.1		 150
500		 500
19.7		 300
11.8		 250
9.8		 790
31.1		 850
33.5		 820
32.3		 1010
39.8		 585
23.0		 460
18.1		 690
27.2
S4025-19 25
1		 35.6
1.4		 100
300		 440
17.3		 240
9.4		 250
9.8		 890
35.0		 950
37.4		 770
30.3		 1110
43.7		 635
25.0		 400
15.7		 790
31.1
S4025-29 25
1		 35.6
1.4		 150
500		 500
19.7		 300
11.8		 250
9.8		 890
35.0		 950
37.4		 830
32.7		 1110
43.7		 635
25.0		 460
18.1		 790
31.1
S4032-5 32
1-1/4		 43.9
1.7		 30
100		 440
17.3		 240
9.4		 300
11.8		 740
29.1		 800
31.5		 790
31.1		 960
37.8		 560
22.0		 400
15.7		 640
25.2
S4032-9 32
1-1/4		 43.9
1.7		 50
165		 440
17.3		 240
9.4		 300
11.8		 890
35.0		 950
37.4		 790
31.1		 1135
44.7		 660
26.0		 400
15.7		 790
31.1
S4040-5 38
1-1/2		 50.8
2.0		 30
100		 440
17.3		 240
9.4		 300
11.8		 840
33.1		 900
35.4		 805
31.7		 1060
41.7		 610
24.0		 400
15.7		 740
29.1
S4040-9 38
1-1/2		 50.8
2.0		 50
165		 500
19.7		 300
11.8		 300
11.8		 890
35.0		 950
37.4		 865
34.1		 1150
45.3		 675
26.6		 460
18.1		 790
31.1
S4050-5 50
2		 64.6
2.5		 30
100		 500
19.7		 300
11.8		 400
15.7		 990
39.0		 1050
41.3		 890
35.0		 1250
49.2		 725
28.5		 460
18.1		 890
35.0
S4050-9 50
2		 64.6
2.5		 50
165		 500
19.7		 300
11.8		 400
15.7		 1190
46.9		 1250
49.2		 890
35.0		 1450
57.1		 825
32.5		 460
18.1		 1090
42.9
S4075-5 75
3		 84.8
2.5		 30
100		 500
19.7		 300
11.8		 500
19.7		 1300
51.2		 1300
51.2		 915
36.0		 1500
59.1		 850
33.5		 460
18.1		 1200
47.2

※The specifications are subject to be changed without previous notice for improvement.
