Spring Rewind
(ER-N-Series) | Cable Reel

HOME > NEW PRODUCTS > Spring Rewind (ER-N-Series)
Cable Reel | Spring Rewind
크게보기
Specification
Cable specifications Allowable
Current		 Rewind Installation
Square Cable Material Core Length(MR)
1.5~2.5 VCTF 3 10MR~30MR
30feet~100feet		 15A Spring Wall,Ceiling

Design & Structure

  • Sturdy single pedestal reel with space saving design facilitates workplace organization
  • Guide arm adjusts to wall, floor, vehicle & overhead positions

Specification

  • Exclusive cord Reel with good and compact design.
  • Optimized Model of small capacity and short length hose.
  • Install by oneself with lightweight.
  • Wide range of use with 120º rotation of left and right
  • Excellent durability install with strong and high quality spring

Retraction

  • Non-corrosive stainless steel spring, pawl and zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length

Painting : Powder Coat

Possible Fields of Application

  • Power Tools
  • Bench Mount
  • Workshops
  • Light Source
  • General Industrial
  • Manufacturing Plants & Facilities
  • Maintenance, Repair & Operations
  • Automotive & Fleet Service Centers
Cable Reel | Spring Rewind
크게보기
Specification

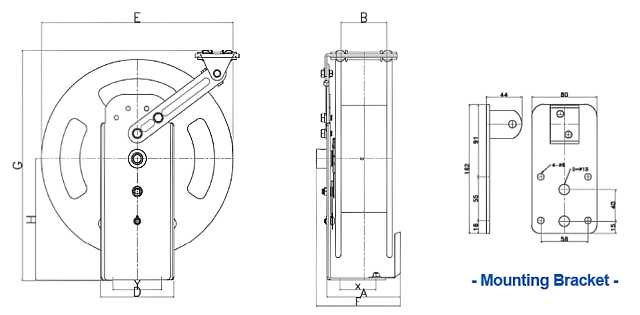

MODEL. No CABLE CAPACITY REEL DIMENSIONS
Available
Cable		 No.
Conductor		 Length A B C D E F G H X Y
sq core meter mm mm mm mm mm mm mm mm mm mm
ER210N 1.5 3 10
33		 95
3.74		 70
2.75		 170
6.69		 120
4.72		 315
12.40		 140
5.51		 365
14.37		 195
7.67		 60
2.36		 80
3.14
ER215N 1.5 3 15
49		 95
3.74		 70
2.75		 170
6.69		 120
4.72		 315
12.40		 140
5.51		 365
14.37		 195
7.67		 60
2.36		 80
3.14
ER220N 1.5 3 20
66		 95
3.74		 70
2.75		 170
6.69		 120
4.72		 315
12.40		 140
5.51		 365
14.37		 195
7.67		 60
2.36		 80
3.14
ER225N 1.5 3 25
82		 132
5.2		 70
2.75		 170
6.69		 120
4.72		 350
13.77		 177
6.97		 395
15.55		 225
8.85		 60
2.36		 80
3.14
ER230N 1.5 3 30
98		 132
5.2		 140
2.75		 170
6.69		 120
4.72		 350
13.77		 177
6.97		 395
15.55		 225
8.85		 60
2.36		 80
3.14
ER310N 2.5 3 10
33		 95
3.74		 70
2.75		 170
6.69		 120
4.72		 315
12.40		 140
5.51		 365
14.37		 195
7.67		 60
2.36		 80
3.14
ER315N 2.5 3 15
49		 95
3.74		 70
2.75		 170
6.69		 120
4.72		 315
12.40		 140
5.51		 365
14.37		 195
7.67		 60
2.36		 80
3.14
ER320N 2.5 3 20
66		 95
3.74		 70
2.75		 170
6.69		 120
4.72		 315
12.40		 140
5.51		 365
14.37		 195
7.67		 60
2.36		 80
3.14
ER325N 2.5 3 25
82		 132
5.2		 70
2.75		 170
6.69		 120
4.72		 350
13.77		 177
6.97		 395
15.55		 225
8.85		 60
2.36		 80
3.14
ER330N 2.5 3 30
98		 132
5.2		 70
2.75		 170
6.69		 120
4.72		 350
13.77		 177
6.97		 395
15.55		 225
8.85		 60
2.36		 80
3.14

※ Product code number of Working Lamp is EL
※ The Specifications are subject to change without notice for improvement
