WCR Series-Spring Rewind
| ARC Welding Cable Reel

HOME > NEW PRODUCTS > Welding Reel (WCR Series)

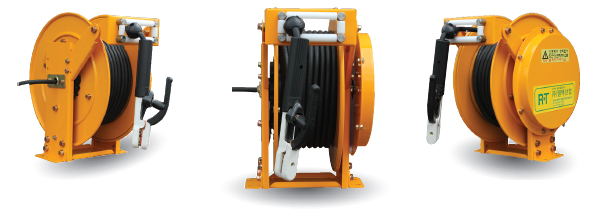

Welding Reel | WCR-Series
ũԺ
Specification
Cable specifications Voltage Max Ampere Rewind Application
Square Cable Material core Length(MR)
25~50 WCT 1 10MR~50MR
33feet~164feet		 220V 600A Spring Floor,Wall,Ceiling

Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without welding
  • Dual frame ,guide plate & ball bearing support.
  • Special heat-treatment spring & non-corrosive, non-sparking ratchet.
  • 4-way guide roller assembly. Roller position must be specified
  • Quick connection to your welder
  • 400amp rated slip ring.
  • All materials are carbon steel as standard(Stainless, Aluminum and other materials are available when you request)
  • Other specifications are available.

Painting : Powder Coat.

ARC Welding Cable Reel | WCR-Series
ũԺ
Specification

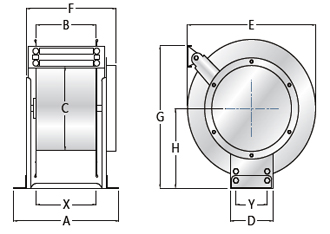

MODEL. No CABLE CAPACITY REEL DIMENSIONS
Wire Size Number of
Conduct		 Length A B C D E F G H X Y
sq core meter mm mm mm mm mm mm mm mm mm mm
WCR25-1 25 1 10
33		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR25-2 25 1 15
49		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR25-3 25 1 20
66		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR25-4 25 1 25
82		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR25-5 25 1 30
98		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR35-1 35 1 10
33		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR35-2 35 1 15
49		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR35-3 35 1 20
66		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR35-4 35 1 25
82		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR35-5 35 1 30
98		 260
10.23		 120
4.72		 300
11.81		 150
5.9		 450
17.71		 250
9.84		 480
18.9		 255
10.03		 230
9.06		 110
4.33
WCR50-1 50 1 10
33		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 350
13.78		 240
9.44		 375
14.76		 200
7.87		 230
9.06		 70
2.76
WCR50-2 50 1 15
49		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR50-3 50 1 20
66		 260
10.23		 120
4.72		 250
9.84		 110
4.33		 380
14.96		 240
9.44		 405
15.94		 215
8.46		 230
9.06		 70
2.76
WCR50-4 50 1 25
82		 260
10.23		 120
4.72		 300
11.81		 150
5.9		 450
17.71		 250
9.84		 480
18.9		 255
10.03		 230
9.06		 110
4.33
WCR50-5 50 1 30
98		 290
11.41		 150
5.9		 300
11.81		 150
5.9		 450
17.71		 250
9.84		 480
18.9		 255
10.03		 260
10.24		 110
4.33
