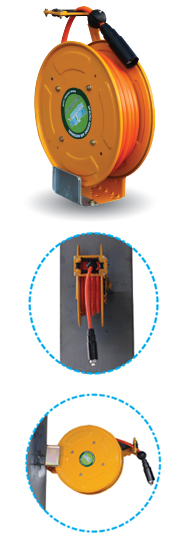

Uses : For Air

Design & Structure

  • Sturdy single pedestal reel with space saving design facilitates workplace organization
  • Guide arm adjusts to wall, floor, vehicle & overhead positions

Specification

  • Exclusive Air Hose Reel with good and compact design.
  • Optimized Model of small capacity and short length hose.
  • Install by oneself with lightweight.
  • Wide range of use with 120º rotation of left and right
  • Excellent durability install with strong and high quality spring

Retraction

  • Special heat-treatment spring, pawl and zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length

Painting : Power Coating

Applications

  • General Industrial Applications
  • Air SERVICES & TOOLS
  • Assembly Operations
  • Manufacturing Plants & Facilities
  • Maintenance, Repair & Operations
  • Automotive & Fleet Service Centers

Specification

Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size Hose Material Length(MR)
ID ø6 ~ ø11 Poly-Urethane/
Poly-Propylene		 10MR~30MR 15㎏f/㎠ 50ºC Spring Wall, Ceiling
30ft~100ft

Hose Reel | Spring Rewind
크게보기

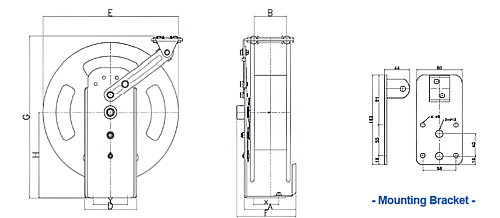

Specification
MODEL. No HOSE CAPACITY REEL DIMENSIONS
I.D O.D LENGTH A B C D E F G H X Y
mm mm meter mm mm mm mm mm mm mm mm mm mm
inch inch feet inch inch inch inch inch inch inch inch inch inch
AR610N 6 10 10 95 70 170 120 315 140 365 195 60 80
0.24 0.39 30 3.74 2.75 6.69 4.72 12.40 5.51 14.37 7.67 2.36 3.14
AR615N 6 10 15 95 70 170 120 315 140 365 195 60 80
0.24 0.39 50 3.74 2.75 6.69 4.72 12.40 5.51 14.37 7.67 2.36 3.14
AR620N 6 10 20 95 70 170 120 315 140 365 195 60 80
0.24 0.39 70 3.74 2.75 6.69 4.72 12.40 5.51 14.37 7.67 2.36 3.14
AR625N 6 10 25 95 70 170 120 350 140 395 225 60 80
0.24 0.39 80 3.74 2.75 6.69 4.72 13.77 5.51 15.55 8.85 2.36 3.14
AR630N 6 10 30 95 70 170 120 350 140 395 225 60 80
0.24 0.39 100 3.74 2.75 6.69 4.72 13.77 5.51 15.55 8.85 2.36 3.14
AR810N 8 12 10 95 70 170 120 315 140 365 195 60 80
0.31 0.47 30 3.74 2.75 6.69 4.72 12.40 5.51 14.37 7.67 2.36 3.14
AR815N 8 12 15 95 70 170 120 315 140 365 195 60 80
0.31 0.47 50 3.74 2.75 6.69 4.72 12.40 5.51 14.37 7.67 2.36 3.14
AR820N 8 12 20 95 70 170 120 315 140 365 195 60 80
0.31 0.47 70 3.74 2.75 6.69 4.72 12.40 5.51 14.37 7.67 2.36 3.14
AR825N 8 12 25 95 70 170 120 350 140 395 225 60 80
0.31 0.47 80 3.74 2.75 6.69 4.72 13.77 5.51 15.55 8.85 2.36 3.14
AR830N 8 12 30 95 70 170 120 350 140 395 225 60 80
0.31 0.47 100 3.74 2.75 6.69 4.72 13.77 5.51 15.55 8.85 2.36 3.14
AR1110N 11 16 10 95 70 170 120 315 140 365 195 60 80
0.43 0.63 30 3.74 2.75 6.69 4.72 12.40 5.51 14.37 7.67 2.36 3.14
AR1115N 11 16 15 95 70 170 120 350 140 395 225 60 80
0.43 0.63 50 3.74 2.75 6.69 4.72 13.77 5.51 15.55 8.85 2.36 3.14
AR1120N 11 16 20 95 70 170 120 350 140 395 225 60 80
0.43 0.63 70 3.74 2.75 6.69 4.72 13.77 5.51 15.55 8.85 2.36 3.14

※ The specifications are subject to change without previous notice for improvement.
