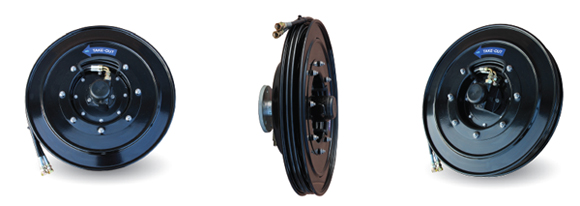

Self Retracting Hydraulic Hose reel
(HTR Series(2-port Hose reel)) | Reel for Crane

HOME > PRODUCTS > Reel for Crane
(HTR Series)

Specification

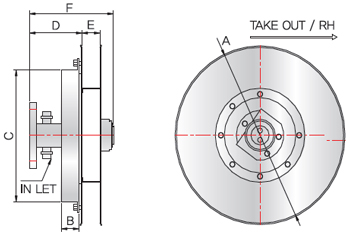

	MODEL NO.	A	B	C	D	E	F	HOSE SIZE	HOSE LENGTH	REELING LENGTH	WORKING PRESSURE (kg/㎠)
1	HTR-06-D380-X	Φ380	60	Φ280	120	30	205	1/4"	8M	7M	195
2	HTR-09-D380-X					40	205	3/8"	6M	5.5M	180
3	HTR-13-D380-X					50	230	1/2"	2.5M	2M	160
4	HTR-06-D450-X	Φ450	60	Φ280	120	30	205	1/4"	10M	9.5M	195
5	HTR-09-D450-X					40	205	3/8"	8.5M	8M	180
6	HTR-13-D450-X					50	230	1/2"	5M	4.5M	160
7	HTR-06-D500-X	Φ500	60	Φ280	120	30	205	1/4"	13M	12.5M	195
8	HTR-09-D500-X					40	205	3/8"	10M	9.5M	180
9	HTR-13-D500-X					50	230	1/2"	7M	6M	160
10	HTR-06-D550-X	Φ550	60	Φ340	120	30	205	1/4"	16.5M	15.5M	195
11	HTR-09-D550-X					40	205	3/8"	13M	12M	180
12	HTR-13-D550-X					50	230	1/2"	8M	7M	160
13	HTR-06-D600-X	Φ600	60	Φ340	120	30	205	1/4"	19.5M	18.5M	195
14	HTR-09-D600-X					40	205	3/8"	15.5M	14.5M	180
15	HTR-13-D600-X					50	230	1/2"	10.5M	9.5M	160
16	HTR-06-D650-X	Φ650	60	Φ340	120	30	205	1/4"	24M	23M	195
17	HTR-09-D650-X					40	205	3/8"	19M	18M	180
18	HTR-13-D650-X					50	230	1/2"	12.5M	11.5M	160
19	HTR-06-D700-X	Φ700	60	Φ400	120	30	205	1/4"	28.5M	27M	195
20	HTR-09-D700-X					40	205	3/8"	21.5M	20M	180
21	HTR-13-D700-X					50	230	1/2"	16.5M	15M	160
22	HTR-06-D750-X	Φ750	60	Φ400	120	30	205	1/4"	34M	32M	195
23	HTR-09-D750-X					40	205	3/8"	26.5M	24.5M	180
24	HTR-13-D750-X					50	230	1/2"	19M	17.5M	160
