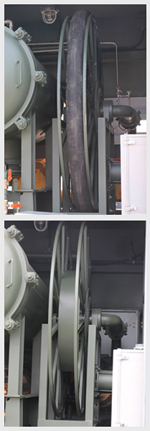

For Fueling of Aviation

Design & Structure

  • Single wrap type hose reel for Jet Refueler & Refueling Vehicle
  • Standard Rewinding Speed :20MR/min
  • Working Voltage : DC12V/24V(Available Change)
  • Motor is installed outside of the reel
  • Stable Rewinding hose by installed 4 way Guide roller. (Option)
  • Bevel Gear Type for Manual Handle
  • Explosion Proof Motor will be installed.
  • Series 5000 reels are supplied without hose. Hose assemblies will be quoted according to your request.
  • Other Specifications are available
※ When order Power Rewind Type,Must choice Motor Type as below;
  • MD : ELECTRIC MOTOR REWIND
  • AMD : AIR MOROTR REWIND
  • HMD : HYDRAULIC MOTOR REWIND

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
1-1/2 inch~3 inch NBR 15MR~30MR 600psi/40bar 212℉ (100℃) Manual & Power Motor Floor
50ft~100ft
Hose Reel | Power Rewind
크게보기
Specification

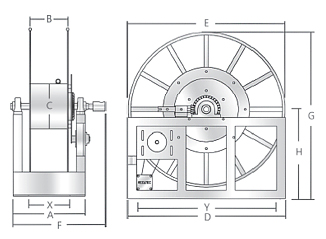

MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
S5040-2 38
1-1/2		 54
2.1		 15
49.2		 265
10.4		 85
3.3		 430
16.9		 1100
43.3		 1200
47.2		 445
17.5		 1300
51.2		 700
27.6		 205
27.6		 1000
39.4
S5040-3 38
1-1/2		 54
2.1		 20
66		 265
10.4		 85
3.3		 430
16.9		 1200
47.2		 1300
51.2		 445
17.5		 1400
55.1		 750
30		 205
30		 1100
43.3
S5040-4 38
1-1/2		 54
2.1		 25
82		 265
10.4		 85
3.3		 430
16.9		 1400
55.1		 1500
59		 445
17.5		 1600
63		 850
33.5		 205
33.5		 1300
51.2
S5040-5 38
1-1/2		 54
2.1		 30
98		 265
10.4		 85
3.3		 430
16.9		 1500
59		 1600
63		 445
17.5		 1700
67		 900
35.4		 205
35.4		 1400
55.1
S5050-2 50
2		 67
2.6		 15
49.2		 275
10.8		 95
3.7		 550
21.6		 1250
49.2		 1350
53.1		 455
17.9		 1450
57.1		 775
30.5		 215
30.5		 1150
45.3
S5050-3 50
2		 67
2.6		 20
66		 275
10.8		 95
3.7		 550
21.6		 1400
55.1		 1500
59.1		 455
17.9		 1600
63		 850
33.5		 215
33.5		 1300
51.2
S5050-4 50
2		 67
2.6		 25
82		 275
10.8		 95
3.7		 550
21.6		 1550
61		 1650
65		 455
17.9		 1750
68.9		 925
36.4		 215
36.4		 1450
57.1
S5050-5 50
2		 67
2.6		 30
98		 275
10.8		 95
3.7		 550
21.6		 1650
65		 1750
68.9		 455
17.9		 1850
72.8		 975
38.4		 215
38.4		 1550
61
S5065-2 65
2-1/2		 83
3.3		 15
49.2		 300
11.8		 110
4.3		 600
23.6		 1250
49.2		 1350
53.1		 500
19.7		 1480
58.2		 805
31.7		 240
31.7		 1150
45.3
S5065-3 65
2-1/2		 83
3.3		 20
66		 300
11.8		 110
4.3		 600
23.6		 1550
61		 1650
65		 500
19.7		 1780
70.1		 955
37.6		 240
37.6		 1450
57.1
S5065-4 65
2-1/2		 83
3.3		 25
82		 300
11.8		 110
4.3		 600
23.6		 1700
67		 1800
70.9		 500
19.7		 1930
76		 1030
40.6		 240
40.6		 1600
63
S5065-5 65
2-1/2		 83
3.3		 30
98		 300
11.8		 110
4.3		 600
23.6		 1900
74.8		 2000
78.7		 500
19.7		 2130
83.9		 1130
44.5		 240
44.5		 1800
70.9
S5075-2 75
3		 96
3.8		 15
49.2		 300
11.8		 110
4.3		 600
23.6		 1400
55.1		 1500
59		 500
19.7		 1630
64.2		 880
34.6		 240
34.6		 1300
51.2
S5075-3 75
3		 96
3.8		 20
66		 300
11.8		 110
4.3		 600
23.6		 1600
63		 1700
67		 500
19.7		 1830
72		 980
38.6		 240
38.6		 1500
59
S5075-4 75
3		 96
3.8		 25
82		 300
11.8		 110
4.3		 600
23.6		 1750
68.9		 1850
72.8		 500
19.7		 1980
78		 1055
41.5		 240
41.5		 1650
65
S5075-5 75
3		 96
3.8		 30
98		 300
11.8		 110
4.3		 600
23.6		 1900
74.8		 2000
78.7		 500
19.7		 2130
83.9		 1130
44.5		 240
44.5		 1800
70.9

※The specifications are subject to be changed without previous notice for improvement.
