Power Rewind (Series 2000) | Hose Reel

HOME > PRODUCTS > Power Rewind (Series 2000)

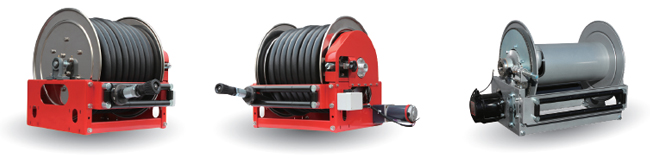

Hose Reel | Power Rewind
크게보기

Uses : Fuel dispensing,Fire protection,Water supply,Chemical transfer etc.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
3/8 inch~ 2 inch Rubber(1W/B) 50MR~200MR 2900psi/200bar 212℉ (100℃) Manual & Power Motor Floor
160ft~650ft

Design & Structure

  • Heavy duty steel construction and compact design is suitable for long lengths of hose in power rewind.
  • If it is power rewind, Motor is installed outside of the Reel.
  • Power rewind reels are not supplied with switch but can be ordered separately
  • Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.
  • Direct crank rewind is permanently attached (Direct crank rewind is removable when you need.)
  • Roller guides are option(Specify roller position when ordering.)
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • Full flow shaft and swivel.
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Inlet & Outlet connection threads are female NPT (Other threads are available when you request)
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
  • Type of Bevel Gear crank rewind is options(Pinion brake as standard)
  • Option:Automatic guide,Speed controler,Clutch is available.
  • Series 2000 reels are supplied without hose. Hose assemblies will be quoted according to your request.
  • Other specifications are available.

Painting : Powder Coat.

Hose Reel | Power Rewind
크게보기

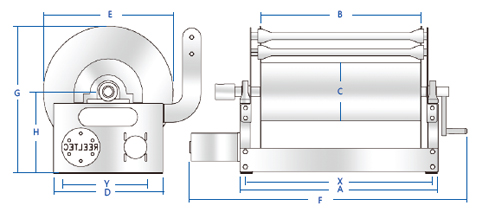

Specification
MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F
(MANUAL)		 F
(POWER)		 G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
S209-9 9.5
3/8		 17.5
0.6		 50
165		 400
15.7		 240
9.4		 200
7.9		 390
15.4		 450
17.7		 640
25.2		 740
29.1		 500
19.7		 275
10.8		 460
18.1		 290
11.4
S209-19 9.5
3/8		 17.5
0.6		 100
300		 540
21.3		 380
15		 200
7.9		 390
15.4		 450
17.7		 880
34.6		 880
34.6		 500
19.7		 275
10.8		 500
19.7		 290
11.4
S209-29 9.5
3/8		 17.5
0.6		 150
500		 710
28		 550
21.7		 200
7.9		 390
15.4		 450
17.7		 1050
41.3		 1050
41.3		 500
19.7		 275
10.8		 670
26.4		 290
11.4
S209-39 9.5
3/8		 17.5
0.6		 200
650		 710
28		 550
21.7		 200
7.9		 440
17.3		 500
19.7		 1050
41.3		 1050
41.3		 550
21.7		 300
11.8		 670
26.4		 340
13.4
S2013-9 12.7
1/2		 20.6
2.8		 50
165		 460
18.1		 300
11.8		 250
9.8		 390
15.4		 450
17.7		 665
26.2		 800
31.5		 500
19.7		 275
10.8		 420
16.5		 290
11.4
S2013-19 12.7
1/2		 20.6
2.8		 100
300		 710
28.0		 550
21.7		 250
9.8		 390
15.4		 450
17.7		 915
36.0		 1050
41.3		 500
19.7		 275
10.8		 670
26.4		 290
11.4
S2013-29 12.7
1/2		 20.6
2.8		 150
500		 660
26.0		 500
19.7		 250
9.8		 490
19.3		 550
21.7		 865
34.1		 1050
41.3		 600
23.6		 325
12.8		 620
24.4		 390
15.4
S2013-39 12.7
1/2		 20.6
2.8		 200
650		 860
33.9		 700
27.6		 250
9.8		 490
19.3		 550
21.7		 1065
41.9		 1250
49.2		 600
23.6		 325
12.8		 820
32.3		 390
15.4
S2019-9 19
3/4		 27.8
1.1		 50
165		 610
24.0		 450
17.7		 250
9.8		 440
17.3		 500
19.7		 840
33.1		 950
37.4		 550
21.7		 300
11.8		 570
22.4		 340
13.4
S2019-19 19
3/4		 27.8
1.1		 100
300		 860
33.9		 700
27.6		 250
9.8		 440
17.3		 500
19.7		 1065
41.9		 1250
49.2		 550
21.7		 300
11.8		 820
32.3		 340
13.4
S2019-29 19
3/4		 27.8
1.1		 150
500		 860
33.9		 700
27.6		 250
9.8		 540
21.3		 600
23.6		 1065
41.9		 1250
49.2		 650
25.6		 350
13.8		 820
32.3		 440
17.3
S2025-9 25
1		 35.6
1.4		 50
165		 660
26.0		 500
19.7		 250
9.8		 490
19.3		 550
21.7		 890
35.0		 1000
39.4		 600
23.6		 325
12.8		 620
24.4		 390
15.4
S2025-19 25
1		 35.6
1.4		 100
300		 860
33.9		 700
27.6		 250
9.8		 540
21.3		 600
23.6		 1065
41.9		 1250
49.2		 650
25.6		 350
13.8		 820
32.3		 440
17.3
S2025-29 25
1		 35.6
1.4		 150
500		 860
33.9		 700
27.6		 250
9.8		 640
25.2		 700
27.6		 1065
41.9		 1250
49.2		 750
29.5		 400
15.7		 820
32.3		 540
21.3
S2032-3 32
1-1/4		 43.9
1.7		 20
70		 670
26.4		 500
19.7		 300
11.8		 440
17.3		 500
19.7		 875
34.4		 1060
41.7		 550
21.7		 300
11.8		 630
24.8		 340
13.4
S2032-5 32
1-1/4		 43.9
1.7		 30
100		 820
32.3		 650
25.6		 300
11.8		 440
17.3		 500
19.7		 1025
40.4		 1210
47.6		 550
21.7		 300
11.8		 780
30.7		 340
13.4
S2032-9 32
1-1/4		 43.9
1.7		 50
165		 870
34.3		 700
27.6		 300
11.8		 590
23.2		 650
25.6		 1075
42.3		 1260
49.6		 700
27.6		 375
17.8		 830
32.7		 490
19.3
S2040-3 38
1-1/2		 50.8
2.0		 20
70		 620
24.4		 450
17.7		 300
11.8		 540
21.3		 600
23.6		 825
32.5		 1010
39.8		 650
25.6		 350
13.8		 580
22.8		 440
17.3
S2040-5 38
1-1/2		 50.8
2.0		 30
100		 820
32.3		 650
25.6		 300
11.8		 540
21.3		 600
23.6		 1025
40.4		 1210
47.6		 650
25.6		 350
13.8		 780
30.7		 440
17.3
S2040-9 38
1-1/2		 50.8
2.0		 50
165		 870
34.3		 700
27.6		 300
11.8		 640
25.2		 700
27.6		 1075
42.3		 1260
49.6		 750
29.5		 400
15.7		 830
32.7		 540
21.3
S2050-3 50
2		 64.6
2.5		 20
70		 880
34.6		 700
27.6		 400
15.7		 640
25.2		 700
27.6		 1085
42.7		 1270
50.0		 750
29.5		 400
15.7		 840
33.1		 540
21.3
S2050-5 50
2		 64.6
2.5		 30
100		 880
34.6		 700
27.6		 400
15.7		 690
27.2		 750
29.5		 1085
42.7		 1270
50.0		 800
31.5		 425
16.7		 840
33.1		 590
23.2
S2050-7 50
2		 64.6
2.5		 40
130		 1080
42.5		 900
35.4		 400
15.7		 690
27.2		 750
29.5		 1285
50.6		 1470
57.9		 800
31.5		 425
16.7		 1040
40.9		 590
23.2

※The specifications are subject to be changed without previous notice for improvement.
