Uses : For Air,Water,Hydraulic,
Lubrication,Fuel dispensing etc.

Design & Structure

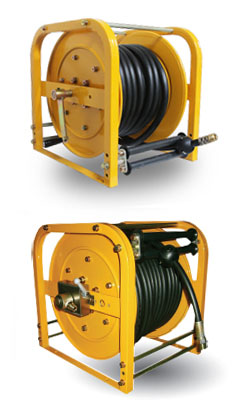

  • Lightweight steel construction , compact design and versatile usage.
  • HQ Series designed for mobile and portable
  • Square pipe frame is suitable for portable than another type.
  • Permanent direct crank rewind .
  • Roller guides is option(Specify roller position when ordering.)
  • Brake System: cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • Full flow shaft and swivel
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Inlet & Outlet connection threads are female NPT.
    (Other threads are available when you request)
  • All materials are carbon steel as standard
    (Stainless, Aluminum and other materials are available when you request)
  • All HQ series reels are supplied without hose, hose assemblies will be quoted as you requested.
  • Other specifications are available

Painting : Powder Coat.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
1/4inch~1/2 inch PVC(1/TB) 20MR~50MR 2900psi/200bar 212℉ (100℃) Manual Floor
Rubber(1W/B) 70ft~160ft
Hose Reel | Manual Rewind
크게보기
Specification

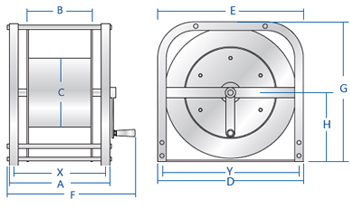

MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
HQ6-3 6.5
1/4		 13
0.5		 20
50		 180
7.1		 70
2.8		 200
7.9		 420
16.5		 380
15		 280
11		 410
16.1		 210
8.3		 155
6.1		 250
9.8
HQ6-5 6.5
1/4		 13
0.5		 30
100		 210
8.3		 100
3.9		 200
7.9		 420
16.5		 380
15		 310
12.2		 410
16.1		 210
8.3		 185
7.3		 250
9.8
HQ6-7 6.5
1/4		 13
0.5		 40
130		 230
9.1		 120
4.7		 200
7.9		 420
16.5		 380
15		 330
13		 410
16.1		 210
8.3		 205
8.1		 250
9.8
HQ6-9 6.5
1/4		 13
0.5		 50
165		 260
10.2		 150
5.9		 200
7.9		 420
16.5		 380
15		 360
14.2		 410
16.1		 210
8.3		 235
9.3		 250
9.8
HQ9-3 9.5
3/8		 16.5
0.6		 20
50		 230
9.1		 120
4.7		 200
7.9		 420
16.5		 380
15		 330
13		 410
16.1		 210
8.3		 205
8.1		 250
9.8
HQ9-5 9.5
3/8		 16.5
0.6		 30
100		 290
11.4		 180
7.1		 200
7.9		 420
16.5		 380
15		 390
15.4		 410
16.1		 210
8.3		 265
10.4		 250
9.8
HQ9-7 9.5
3/8		 16.5
0.6		 40
130		 320
12.6		 210
8.3		 200
7.9		 420
16.5		 380
15		 420
16.5		 410
16.1		 210
8.3		 295
11.6		 250
9.8
HQ9-9 9.5
3/8		 16.5
0.6		 50
165		 350
13.8		 240
9.4		 200
7.9		 420
16.5		 380
15		 450
17.7		 410
16.1		 210
8.3		 325
12.8		 250
9.8
HQ13-3 12.7
1/2		 20.6
2.8		 20
50		 290
11.4		 180
7.1		 200
7.9		 420
16.5		 380
15		 400
15.7		 410
16.1		 210
8.3		 265
10.4		 250
9.8
HQ13-5 12.7
1/2		 20.6
2.8		 30
100		 350
13.8		 240
9.4		 200
7.9		 420
16.5		 380
15		 460
18.1		 410
16.1		 210
8.3		 325
12.8		 250
9.8
HQ13-7 12.7
1/2		 20.6
2.8		 40
130		 410
16.1		 300
11.8		 200
7.9		 420
16.5		 380
15		 520
20.5		 410
16.1		 210
8.3		 385
15.2		 250
9.8
HQ13-9 12.7
1/2		 20.6
2.8		 50
165		 460
18.1		 350
13.8		 200
7.9		 420
16.5		 380
15		 570
22.4		 410
16.1		 210
8.3		 435
17.1		 250
9.8

※The specifications are subject to be changed without previous notice for improvement.
