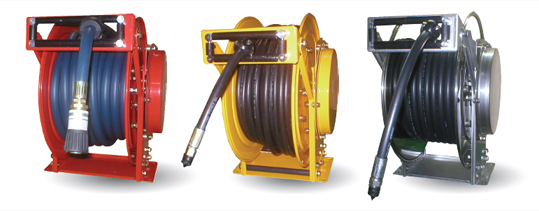

Hose Reel | Spring Rewind
크게보기

Uses : For Air,Water,Hydraulic,Lubrication etc.

Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without welding
  • Dual frame ,guide plate & ball bearing support.
  • Special heat-treatment spring & non-corrosive ratchet.
  • 4-way roller assembly.
  • Full flow shaft and swivel.
  • Standard inlet 90° balanced pressure swivel joint (NBR Packing)
  • All(Outlet & inlet) connection threads is female NPT (Other threads can be furnished when you request)
  • All materials is carbon steel as standard (Stainless, Aluminum and other materials are available when you request)

Painting:powder coat.

HOSE

  • Low pressure hose reels are furnished standard with PVC.
  • Medium pressure hose reels are furnished standard with S.A.E 100R1 TYPE AT one wire braid hose.
  • High pressure hose reels are furnished standard with S.A.E 100R2 TYPE AT two wire braid hose.

Other specifications are available.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
1/4inch~1/2inch PVC(1/TB) 10MR~50MR 2900psi/200bar 212℉ (100℃) Spring Floor, Wall, Ceiling
Rubber(1W/B) 30ft~160ft
Hose Reel | Spring Rewind
크게보기
Specification
MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm
inch		 mm
inch		 meter
feet		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch
ST6-1 6.5
1/4		 13
0.5		 10
30		 220
8.7		 70
2.7		 170
6.6		 110
4.3		 300
11.8		 195
8.7		 325
12.8		 175
6.9		 180
7.1		 70
2.8
ST6-2 6.5
1/4		 13
0.5		 15
50		 220
8.7		 70
2.7		 170
6.6		 110
4.3		 350
13.8		 195
8.7		 375
14.8		 200
7.9		 180
7.1		 70
2.8
ST6-3 6.5
1/4		 13
0.5		 20
70		 220
8.7		 70
2.7		 170
6.6		 110
4.3		 350
13.8		 195
8.7		 375
14.8		 200
7.9		 180
7.1		 70
2.8
ST6-4 6.5
1/4		 13
0.5		 25
80		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 350
13.8		 245
9.6		 375
14.8		 200
7.9		 180
7.1		 70
2.8
ST6-5 6.5
1/4		 13
0.5		 30
100		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15		 245
9.6		 405
15.9		 215
8.5		 180
7.1		 70
2.8
ST6-6 6.5
1/4		 13
0.5		 35
120		 270
10.6		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 245
9.6		 480
18.9		 255
10		 230
9.1		 110
4.3
ST6-7 6.5
1/4		 13
0.5		 40
130		 270
10.6		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 245
9.6		 480
18.9		 255
10		 230
9.1		 110
4.3
ST6-8 6.5
1/4		 13
0.5		 45
150		 300
11.8		 150
5.9		 300
11.8		 150
5.9		 450
17.7		 275
10.8		 480
18.9		 255
10		 260
10.2		 110
4.3
ST6-9 6.5
1/4		 13
0.5		 50
164		 300
11.8		 150
5.9		 300
11.8		 150
5.9		 450
17.7		 275
10.8		 480
18.9		 255
10		 260
10.2		 110
4.3
ST9-1 9.5
3/8		 16.5
0.6		 10
30		 220
8.7		 70
2.7		 170
6.6		 110
4.3		 300
11.8		 195
8.7		 325
12.8		 175
6.9		 180
7.1		 70
2.8
ST9-2 9.5
3/8		 16.5
0.6		 15
50		 220
8.7		 70
2.7		 170
6.6		 110
4.3		 300
11.8		 195
8.7		 375
14.8		 200
7.9		 180
7.1		 70
2.8
ST9-3 9.5
3/8		 16.5
0.6		 20
70		 290
11.4		 140
5.5		 170
6.6		 110
4.3		 350
13.8		 265
10.4		 375
14.8		 200
7.9		 250
9.8		 70
2.8
ST9-4 9.5
3/8		 16.5
0.6		 25
80		 290
11.4		 140
5.5		 170
6.6		 110
4.3		 350
13.8		 265
10.4		 375
14.8		 200
7.9		 250
9.8		 70
2.8
ST9-5 9.5
3/8		 16.5
0.6		 30
100		 290
11.4		 140
5.5		 170
6.6		 110
4.3		 380
15		 265
10.4		 405
15.9		 215
8.5		 250
9.8		 70
2.8
ST9-6 9.5
3/8		 16.5
0.6		 35
115		 270
10.6		 120
4.7		 300
11.8		 150
5.9		 550
21.7		 245
9.6		 585
23		 310
12.2		 230
9.1		 110
4.3
ST9-7 9.5
3/8		 16.5
0.6		 40
131		 270
10.6		 120
4.7		 300
11.8		 150
5.9		 550
21.7		 245
9.6		 585
23		 310
12.2		 230
9.1		 110
4.3
ST9-8 9.5
3/8		 16.5
0.6		 45
148		 300
11.8		 150
5.9		 300
11.8		 150
5.9		 550
21.7		 275
10.8		 585
23		 310
12.2		 260
10.2		 110
4.3
ST9-9 9.5
3/8		 16.5
0.6		 50
164		 300
11.8		 150
5.9		 300
11.8		 150
5.9		 550
21.7		 275
10.8		 585
23		 310
12.2		 260
10.2		 110
4.3
ST13-1 12.7
1/2		 20.6
0.8		 10
30		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 350
13.8		 275
10.8		 375
14.8		 200
7.9		 230
9.1		 70
2.8
ST13-2 12.7
1/2		 20.6
1.8		 15
50		 300
11.8		 150
5.9		 200
7.9		 110
4.3		 350
13.8		 305
12.0		 375
14.8		 200
7.9		 260
10.2		 70
2.8
ST13-3 12.7
1/2		 20.6
0.8		 20
70		 300
11.8		 150
5.9		 200
7.9		 110
4.3		 380
15		 305
12.0		 405
15.9		 215
8.5		 260
10.2		 70
2.8
ST13-4 12.7
1/2		 20.6
0.8		 25
80		 270
10.6		 120
4.7		 200
7.9		 150
5.9		 450
17.7		 275
10.8		 490
19.3		 265
10.4		 230
9.1		 110
4.3
ST13-5 12.7
1/2		 20.6
0.8		 30
100		 300
11.8		 150
5.9		 200
7.9		 150
5.9		 450
17.7		 275
10.8		 490
19.3		 265
10.4		 260
10.2		 110
4.3
ST13-6 12.7
1/2		 20.6
0.8		 35
115		 300
11.8		 150
5.9		 250
9.8		 200
7.9		 550
21.7		 335
13.2		 585
23		 310
12.2		 260
10.2		 160
6.3
ST13-7 12.7
1/2		 20.6
0.8		 40
130		 300
11.8		 150
5.9		 250
9.8		 200
7.9		 550
21.7		 335
13.2		 585
23		 310
12.2		 260
10.2		 160
6.3
ST13-8 12.7
1/2		 20.6
0.8		 45
150		 330
13		 180
7.1		 250
9.8		 200
7.9		 550
21.7		 335
13.2		 585
23		 310
12.2		 290
11.4		 160
6.3
ST13-9 12.7
1/2		 20.6
0.8		 50
165		 330
13		 180
7.1		 250
9.8		 200
7.9		 550
21.7		 335
13.2		 585
23		 310
12.2		 290
11.4		 160
6.3
ST19-1 19
3/4		 27.8
1.09		 10
30		 270
10.6		 120
4.7		 250
9.8		 200
7.9		 450
17.7		 260
10.2		 490
19.3		 265
10.4		 230
9.1		 160
6.3
ST19-2 19
3/4		 27.8
1.09		 15
50		 300
11.8		 150
5.9		 250
9.8		 200
7.9		 450
17.7		 290
11.4		 490
19.3		 265
10.4		 260
10.2		 160
6.3
ST19-3 19
3/4		 27.8
1.09		 20
70		 360
14.2		 210
8.3		 250
9.8		 200
7.9		 450
17.7		 350
11.8		 490
19.3		 265
10.4		 320
12.6		 160
6.3
ST19-4 19
3/4		 27.8
1.09		 25
80		 360
14.2		 210
8.3		 250
9.8		 200
7.9		 500
19.7		 380
15		 540
21.3		 290
11.4		 320
12.6		 160
6.3
ST19-5 19
3/4		 27.8
1.09		 30
100		 390
15.4		 240
9.4		 250
9.8		 200
7.9		 500
19.7		 410
16.1		 540
21.3		 290
11.4		 350
13.8		 160
6.3
ST25-1 25
1		 35.6
1.4		 10
30		 300
11.8		 150
5.9		 250
9.8		 200
7.9		 500
19.7		 305
12.0		 540
21.3		 290
11.4		 260
10.2		 160
6.3
ST25-2 25
1		 35.6
1.4		 15
50		 330
13.0		 180
7.1		 250
9.8		 200
7.9		 500
19.7		 335
13.2		 540
21.3		 290
11.4		 290
11.4		 160
6.3
ST25-3 25
1		 35.6
1.4		 20
70		 390
15.4		 240
9.4		 250
9.8		 200
7.9		 500
19.7		 395
15.6		 540
21.3		 290
11.4		 350
13.8		 160
6.3
ST25-4 25
1		 35.6
1.4		 25
80		 360
14.2		 210
8.3		 250
9.8		 200
7.9		 550
21.7		 365
14.4		 570
22.4		 320
12.6		 320
12.6		 160
6.3
ST25-5 25
1		 35.6
1.4		 30
100		 390
15.4		 240
9.4		 250
9.8		 200
7.9		 550
21.7		 395
15.6		 570
22.4		 320
12.6		 350
13.8		 160
6.3

※The specifications are subject to change without notice for improvement.
