Spring Rewind
(GCR-Series) | Static Grounding Reel

HOME > PRODUCTS > Static Grounding Reel (GCR-Series)

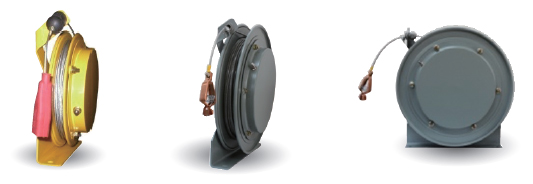

Static Grounding Reel | Spring Rewind
크게보기

Uses : Refuelling equipment,Chemical plants,Bulking sites, Hazardous areas. Reducing the sparking and the potential for explosion.

Design & Structure

  • Lightweight steel construction , compact design and versatile usage.
  • Special heat-treatment spring & non-corrosive ratchet.
  • Positive Ratchet locking of the reel
  • 100Amp Jaw type grounding clamp(Bronze) as standard.
  • All materials are carbon steel as standard(Stainless,Aluminum and other materials are available when you requested

Painting : Powder Coat.

Static Grounding Reel | Spring Rewind
크게보기

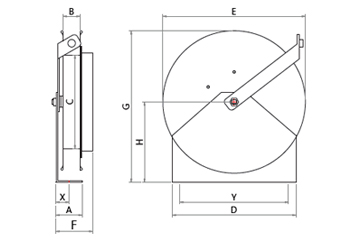

Specification
MODEL NO. WIRE CAPACITY REEL DIMENSIONS
O.D LEN GTH A B C D E F G H X Y
mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
GCR3-2 3
1/8		 15
50		 50
2.0		 24
0.9		 185
7.3		 230
9.1		 250
9.8		 100
3.9		 275
10.8		 150
5.9		 25
1.0		 200
7.9
GCR3-3 3
1/8		 20
70		 50
2.0		 24
0.9		 185
7.3		 250
9.8		 300
11.8		 100
3.9		 325
12.8		 175
6.9		 25
1.0		 200
7.9
GCR3-5 3
1/8		 30
100		 50
2.0		 24
0.9		 185
7.3		 250
9.8		 300
11.8		 100
3.9		 325
12.8		 175
6.9		 25
1.0		 200
7.9
GCR5-2 5
3/16		 15
50		 50
2.0		 24
0.9		 185
7.3		 250
9.8		 300
11.8		 100
3.9		 325
12.8		 175
6.9		 25
1.0		 200
7.9
GCR5-3 5
3/16		 20
70		 55
2.2		 45
1.8		 250
9.8		 330
13.0		 350
13.8		 125
4.9		 375
14.8		 200
7.9		 35
1.4		 290
11.4
GCR5-5 5
3/16		 30
100		 55
2.2		 45
1.8		 250
9.8		 330
13.0		 350
13.8		 125
4.9		 375
14.8		 200
7.9		 35
1.4		 290
11.4

※The specifications are subject to be changed without previous notice for improvement.
