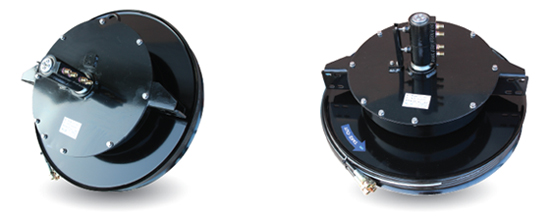

Self Retracting Hydraulic Hose reel
(HFR Series(4-port Hose reel)) | Reel for Crane

HOME > PRODUCTS > Reel for Crane
(HFR Series)
Reel for Crane | Self Retracting Hydraulic Hose reel
크게보기
Reel for Crane | Self Retracting Hydraulic Hose reel
크게보기

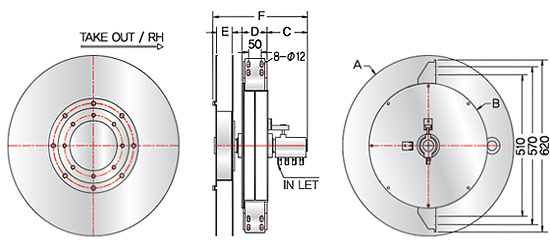

Specification
  MODEL NO. A B C D E F HOSE
SIZE		 HOSE
LENGTH		 REELING
LENGTH		 WORKING
PRESSURE
1 HFR-06-D450 Φ450 60 Φ280 120 60 360 1/4" 9M 8.5M 195(㎏/㎠)
2 HFR-09-D450 75 375 3/8" 7M 6.5M 180(㎏/㎠)
3 HFR-06-D500 Φ500 60 Φ280 120 60 360 1/4" 12M 11.5M 195(㎏/㎠)
4 HFR-09-D500 75 375 3/8" 9M 8.5M 180(㎏/㎠)
5 HFR-06-D550 Φ550 60 Φ340 120 60 360 1/4" 15.5M 14.5M 195(㎏/㎠)
6 HFR-09-D550 75 375 3/8" 11.5M 10.5M 180(㎏/㎠)
7 HFR-06-D600 Φ600 60 Φ340 120 60 360 1/4" 19M 18M 195(㎏/㎠)
8 HFR-09-D600 75 375 3/8" 16M 15M 180(㎏/㎠)
9 HFR-06-D650 Φ650 60 Φ340 120 60 360 1/4" 23M 2M 195(㎏/㎠)
10 HFR-09-D650 75 375 3/8" 17.5M 16.5M 180(㎏/㎠)
11 HFR-06-D700 Φ700 60 Φ400 120 60 360 1/4" 27.5M 26M 195(㎏/㎠)
12 HFR-09-D700 75 375 3/8" 21.5M 20M 180(㎏/㎠)
13 HFR-06-D750 Φ750 60 Φ400 120 60 360 1/4" 32M 30.5M 195(㎏/㎠)
14 HFR-09-D750 75 375 3/8" 24M 22.5M 180(㎏/㎠)
