Self Retracting Cable Reels
(CNR Series) | Reel for Crane

HOME > PRODUCTS > Reel for Crane (CNR Series)

Heavy duty steel construction and without frame.
Special heat-treatment spring & without ratchet(Constant tension)
3~5 conductor 30~50 amp/600 volt rated slip ring.
Brushes are copper graphite with copper alloy rings.
All materials are carbon steel as standard(Stainless,Aluminum and other materials are available when you requested)
Crane cable reels are furnished standard with PNCT Cable
Other specifications are available

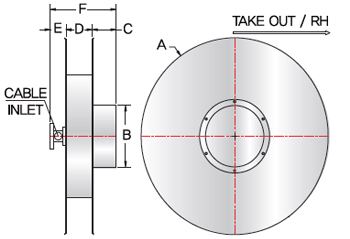

Specification
	CABLE TYPE	A	B	C	D	E	F	CABLE TYPE	CABLE LENGTH
1	CNR2320P-X	Φ450	200	110	80	60	250	PNCTx2.5sqx3c	20M
2	CNR2330P-X	Φ600						PNCTx2.5sqx3c	30M
3	CNR2340P-X	Φ650						PNCTx2.5sqx3c	40M
4	CNR2350P-X	Φ650						PNCTx2.5sqx3c	50M
5	CNR2420P-X	Φ450	200	110	80	60	250	PNCTx2.5sqx4c	20M
6	CNR2430P-X	Φ600						PNCTx2.5sqx4c	30M
7	CNR2440P-X	Φ650						PNCTx2.5sqx4c	40M
8	CNR2450P-X	Φ700						PNCTx2.5sqx4c	50M
9	CNR2520P-X	Φ550	200	130	80	60	270	PNCTx2.5sqx5c	20M
10	CNR2530P-X	Φ650						PNCTx2.5sqx5c	30M
11	CNR2540P-X	Φ700						PNCTx2.5sqx5c	40M
12	CNR2550P-X	Φ750						PNCTx2.5sqx5c	50M
13	CNR4320P-X	Φ450	200	110	80	60	250	PNCTx4.0sqx3c	20M
14	CNR4330P-X	Φ600						PNCTx4.0sqx3c	30M
15	CNR4340P-X	Φ650						PNCTx4.0sqx3c	40M
16	CNR4350P-X	Φ700						PNCTx4.0sqx3c	50M
17	CNR4420P-X	Φ550	200	110	80	60	250	PNCTx4.0sqx4c	20M
18	CNR4430P-X	Φ650						PNCTx4.0sqx4c	30M
19	CNR4440P-X	Φ700						PNCTx4.0sqx4c	40M
20	CNR4450P-X	Φ750						PNCTx4.0sqx4c	50M
21	CNR4520P-X	Φ550	200	130	80	60	270	PNCTx4.0sqx5c	20M
22	CNR4530P-X	Φ650						PNCTx4.0sqx5c	30M
23	CNR4540P-X	Φ750						PNCTx4.0sqx5c	40M
24	CNR4550P-X	Φ800						PNCTx4.0sqx5c	50M
