Power Rewind (CH Series) | Hose Reel

HOME > NEW PRODUCTS > Power Rewind (CH Series)
Hose Reel  |  Power Rewind
크게보기

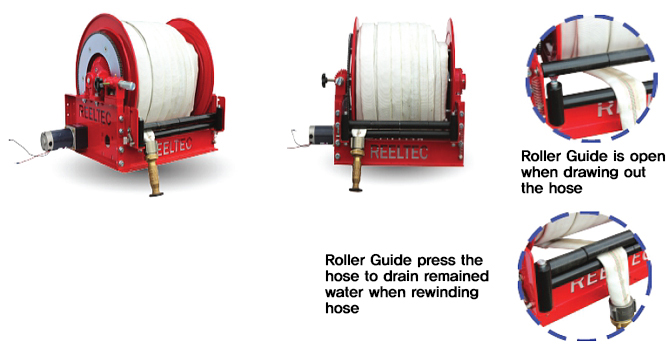

CH Series-FIREFIGHTING COLLAPSIBLE HOSEREEL

Recommendable to use for long distance fire site. No need to connect other hoses.

Rewinding by powerful DC Motor.

Remained water inside hose can be drained during rewinding.

Excellent durability of POWER DC MOTOR

Manual handle of Bevel Gear Type.

Specification
MODEL. No REEL DIMENSION
(W*D*H)m/m
HOSE CAPACITY WORKING PRESSURE REWIND TYPE
CH40-9 610*590*550 40A Collapsible Hose *50MR 10Kg.f/㎠ Power Rewind
CH40-19 810*590*550 40A Collapsible Hose *100MR 10Kg.f/㎠ Power Rewind
CH40-29 860*640*600 40A Collapsible Hose *150MR 10Kg.f/㎠ Power Rewind
CH40-39 960*740*650 40A Collapsible Hose *200MR 10Kg.f/㎠ Power Rewind
CH65-9 750*590*550 65A Collapsible Hose *50MR 10Kg.f/㎠ Power Rewind
CH65-19 860*640*600 65A Collapsible Hose *100MR 10Kg.f/㎠ Power Rewind
CH65-29 1010*740*650 65A Collapsible Hose *150MR 10Kg.f/㎠ Power Rewind
CH65-39 1010*790*700 65A Collapsible Hose *200MR 10Kg.f/㎠ Power Rewind

※The Specifications are subject to change without notice for improvement.
